|SIZE||670mm x 400mm(Max),150mm x 100mm(Min)|
It is used for gluing endpaper on a complete hard covers, such as book cover, notebook, table calendar, gift box, photo album and file folder, etc.

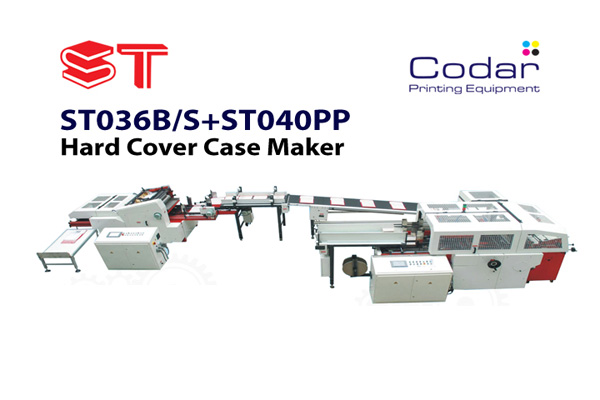

Technical parameters of ST036S Case Making Machine:
Max size: 580x400mm
Min size: 150x100mm (for special size: 100x85mm)
Center board width: 6-100mm
Center board thickness: 0.3-5mm
Gutter width: 3-13mm
Flaps bending width: 7-14mm
Board thickness: 0.8-5mm
Machine weight: 4000kg
Machine size: 3000x2800x1680mm
1. The machine with capacity & environmental protection adopts fully importing electric equipment,
integrating the most advanced photoelectricity, microcomputer and pneumatic. All procedure in automatic
system which ensures high efficiency, precise products. Nice structure, and can operate conveniently.
2.It is used to make hard covers, such as book cover, notebook cover, table calendar cover, calendar
cover, files'cover etc.
Machine Size: 3500mm x 3500mm x 2000mm
